Veterinary Dental Imaging Suite
ONE SUITE. TOTAL CLARITY. SEAMLESS WORKFLOW
Veterinary Intraoral Imaging Solutions
Pulse ISM’s full veterinary dental imaging suite gives you everything you need to diagnose, treat, and protect your patients with confidence. From cutting-edge panoramic technology to durable intraoral sensors and ergonomic x-ray generators, we offer a complete diagnostic platform tailored for today’s veterinary practice.
Whether you’re starting a dental program or upgrading an existing system, our suite integrates comfort, efficiency, and clinical precision.
PANORAMIC DENTAL IMAGING
See the full story—instantly.
Our panoramic veterinary dental imaging system captures a complete view of the oral cavity in a single exposure. It's ideal for full-mouth diagnostics, patient comfort, and faster treatment planning.
Key Benefits:
- Wide-angle view of jaws, teeth, sinuses, and TMJ
- No intraoral sensors required during scanning
- Sedation-based imaging reduces anesthesia risk
- Fast workflows with reduced scan time
- Invaluable for oral pathology, fractures, cysts, and tumors
Real Results. Real Relief.
“A panoramic scan revealed a root abscess in a patient who wasn’t showing symptoms. It saved the pet from months of hidden pain—and the owner from emergency costs. We never would’ve caught it with standard x-rays.”

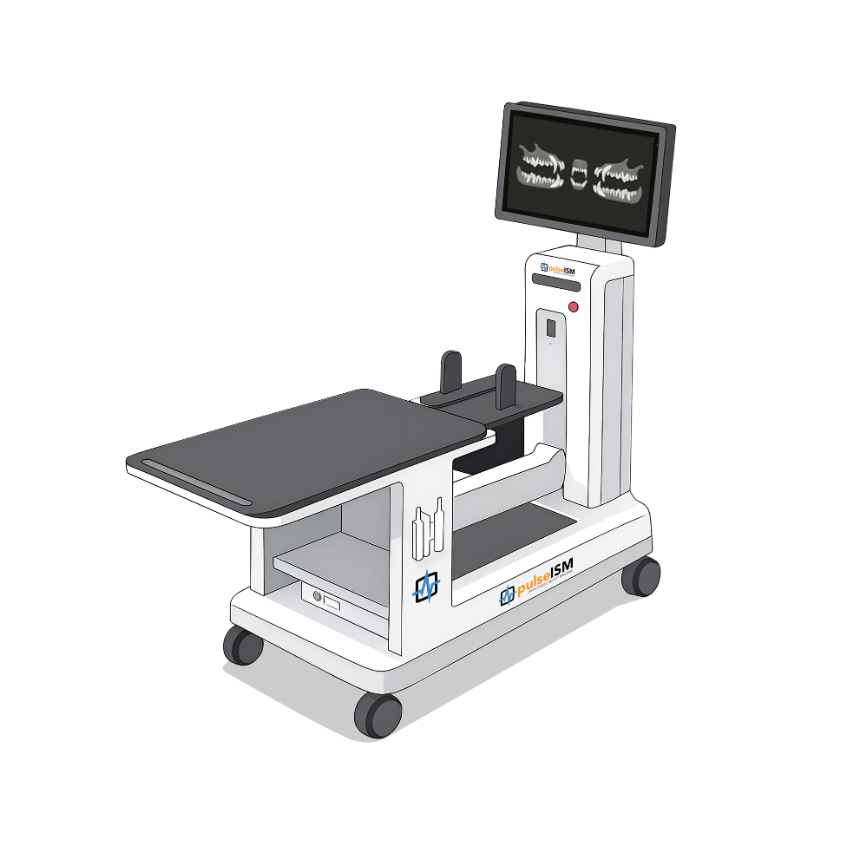

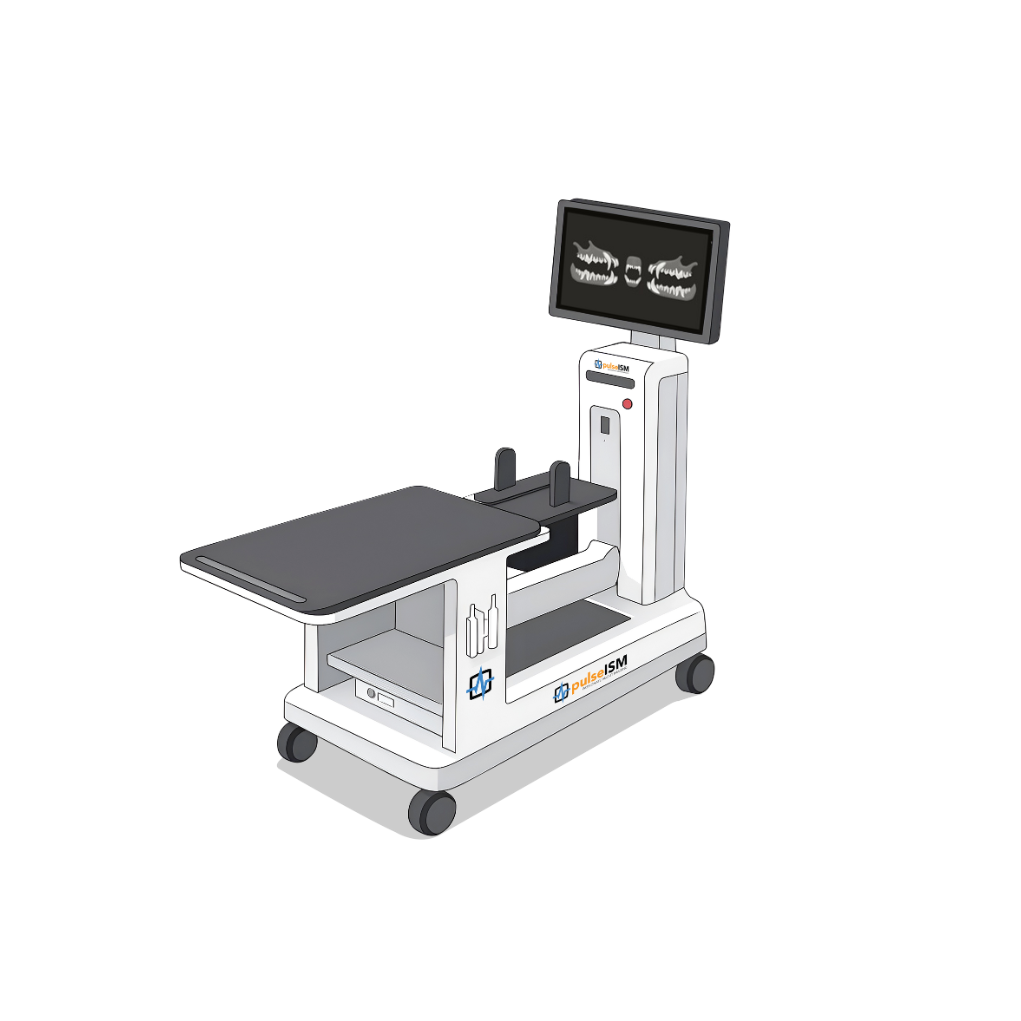

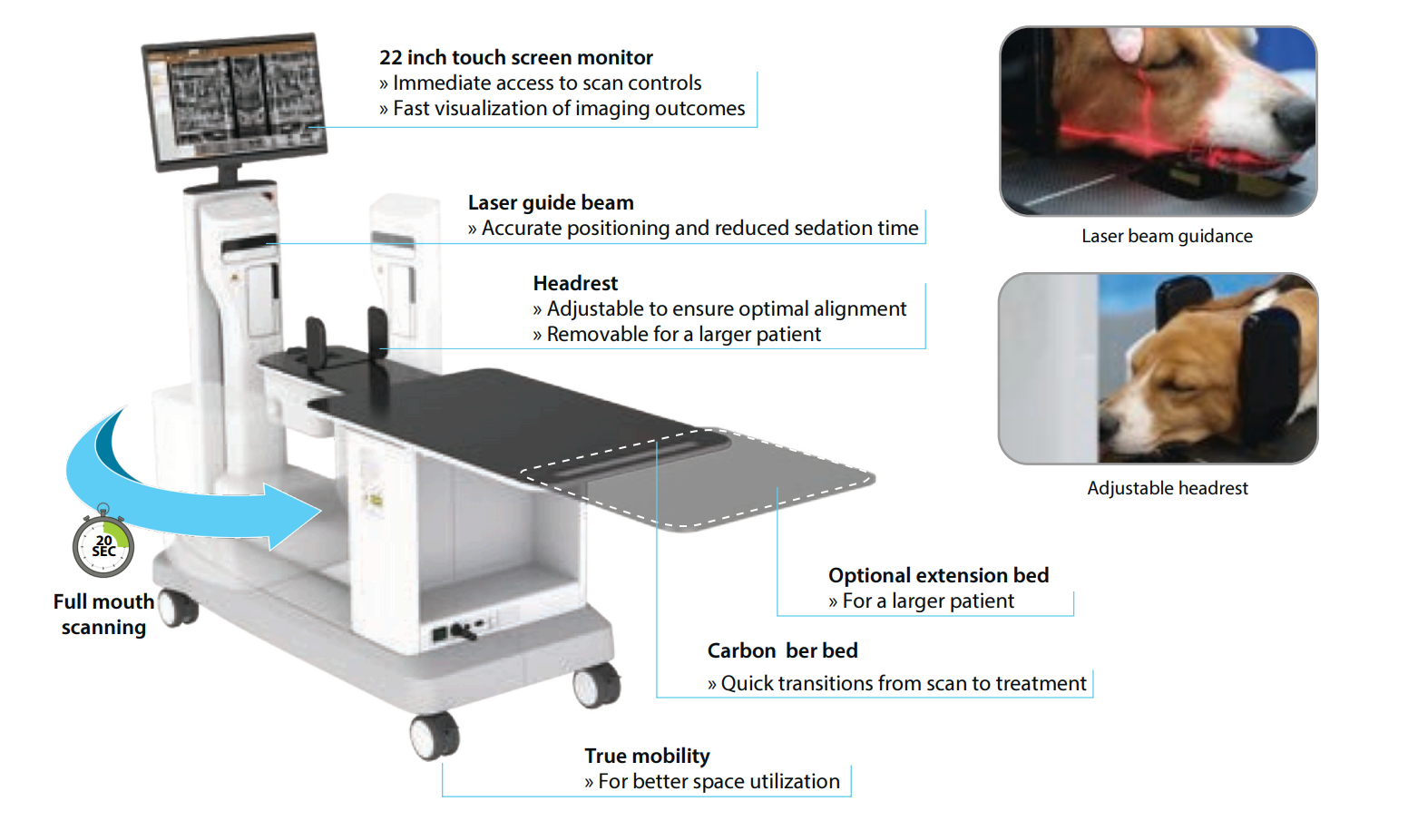

PAN i2d features
The world's first veterinary panoramic dental system
Veterinary specialized panoramic scanning technology and a smart acquisition software provide superior full mouth diagnostic images in a short time.
Easy and quick positioning with less preparation
The procedure can be done within 3 minutes with mild sedation and it is over 7 times faster than traditional full mouth x-ray imaging procedure.
Smart scanning software preset for different jaw sizes

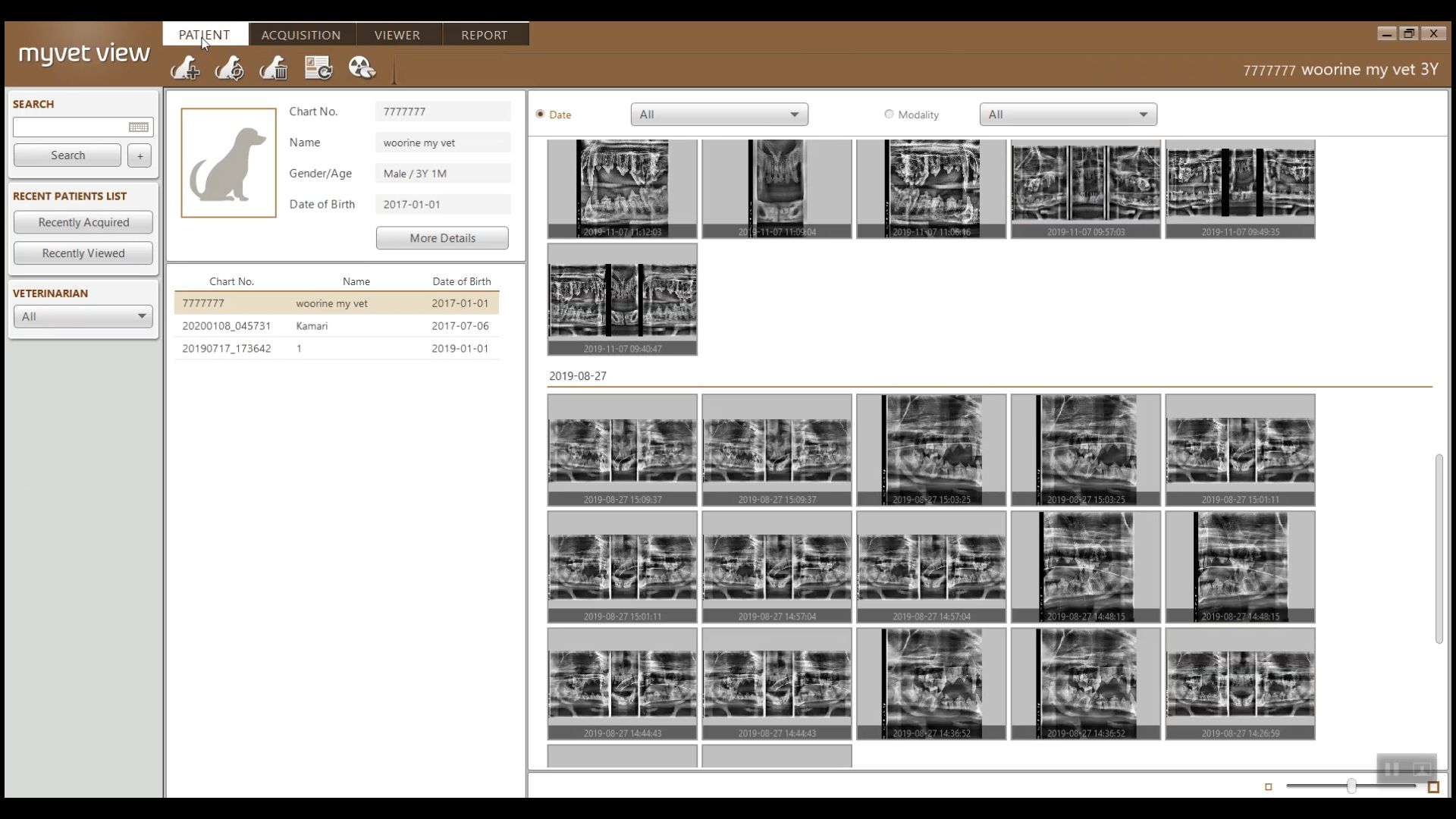

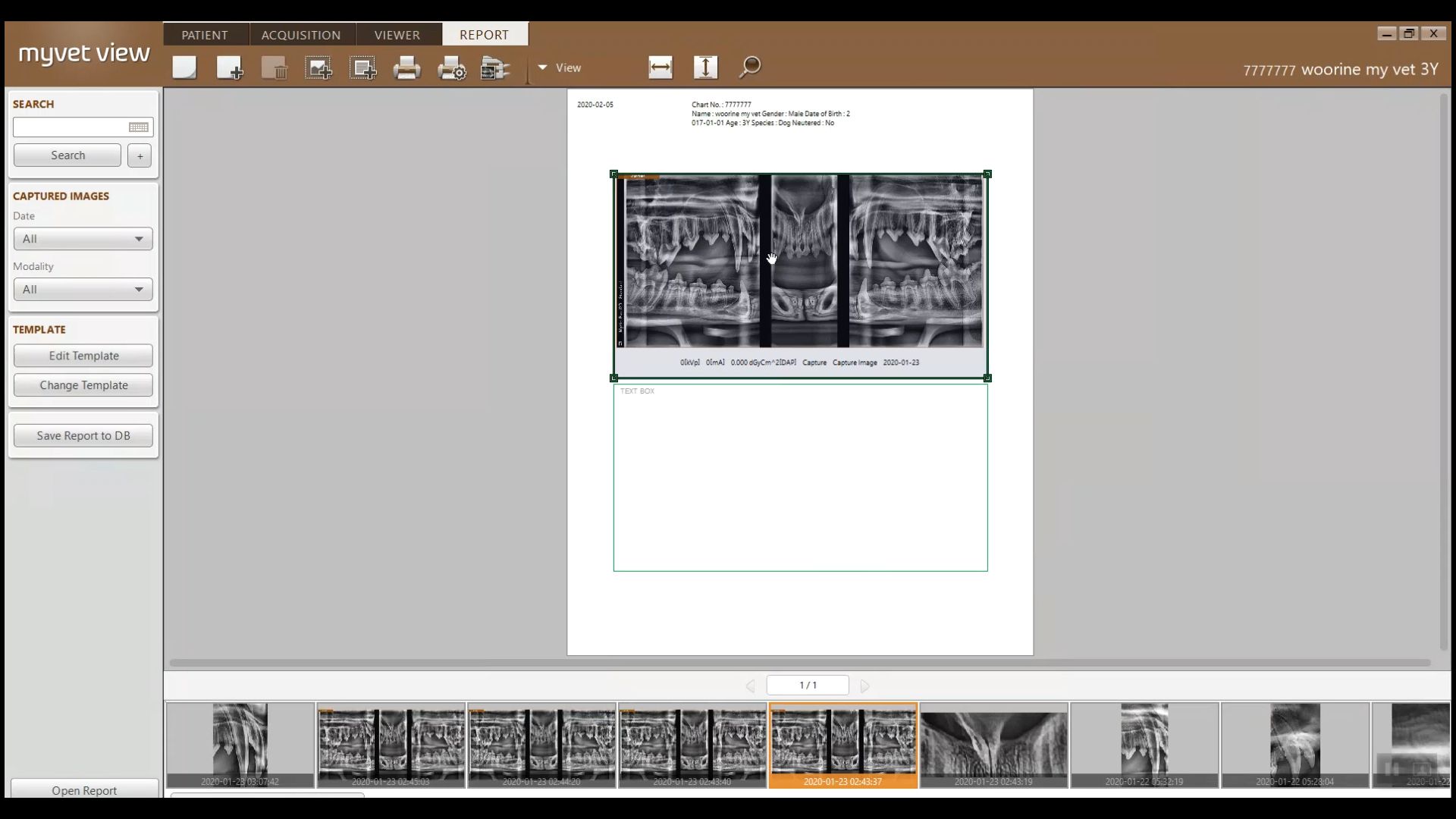

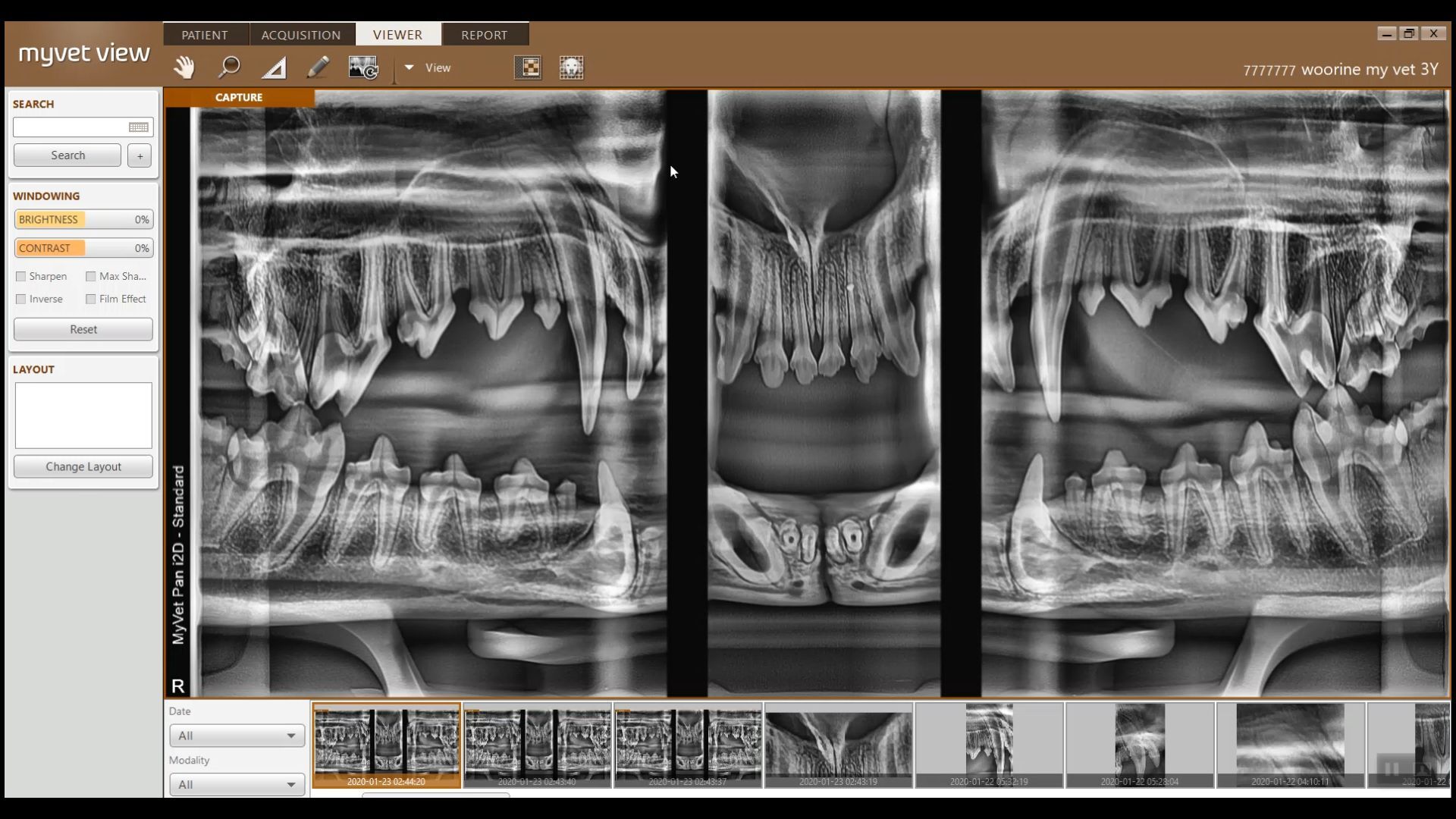

With the intuitive MyVet View software, users can manipulate the image with various image controls and tools. The Pan i2D uses smart scanning presets for different jaw sizes.
ENHANCING DIAGNOSIS AND TREATMENT PLANNING
Time Efficiency in Dental Practice with Panoramic Imaging and Intraoral X-Rays
Panoramic imaging provides an overall view of the full mouth and maxillofacial region within 3 minutes, while intraoral X-rays offer detailed information about individual teeth and specific areas of concern. The ergonomic table design delivers effective workflow to practice owners by easy positioning with less preparation. Facilitated by wheels for easy movement, contributes to an improved workflow by offering accessibility, efficient patient flow, streamlined procedures, operator convenience, and optimized space utilization.
Specifications At-A-Glance:
- Weight: 308.6 lbs (140 kg)
- Dimensions (L x W x H): 64 x 22.3 x 66 (Max.) inch (1627 x 566 x 1676 mm)
- Radius of Rotator Rotation: 16.97 in (431 mm)
- Extension Bed (Option):
19.77 x 21.42 x 0.28 in (502.2 x 544.1 x 7 mm)

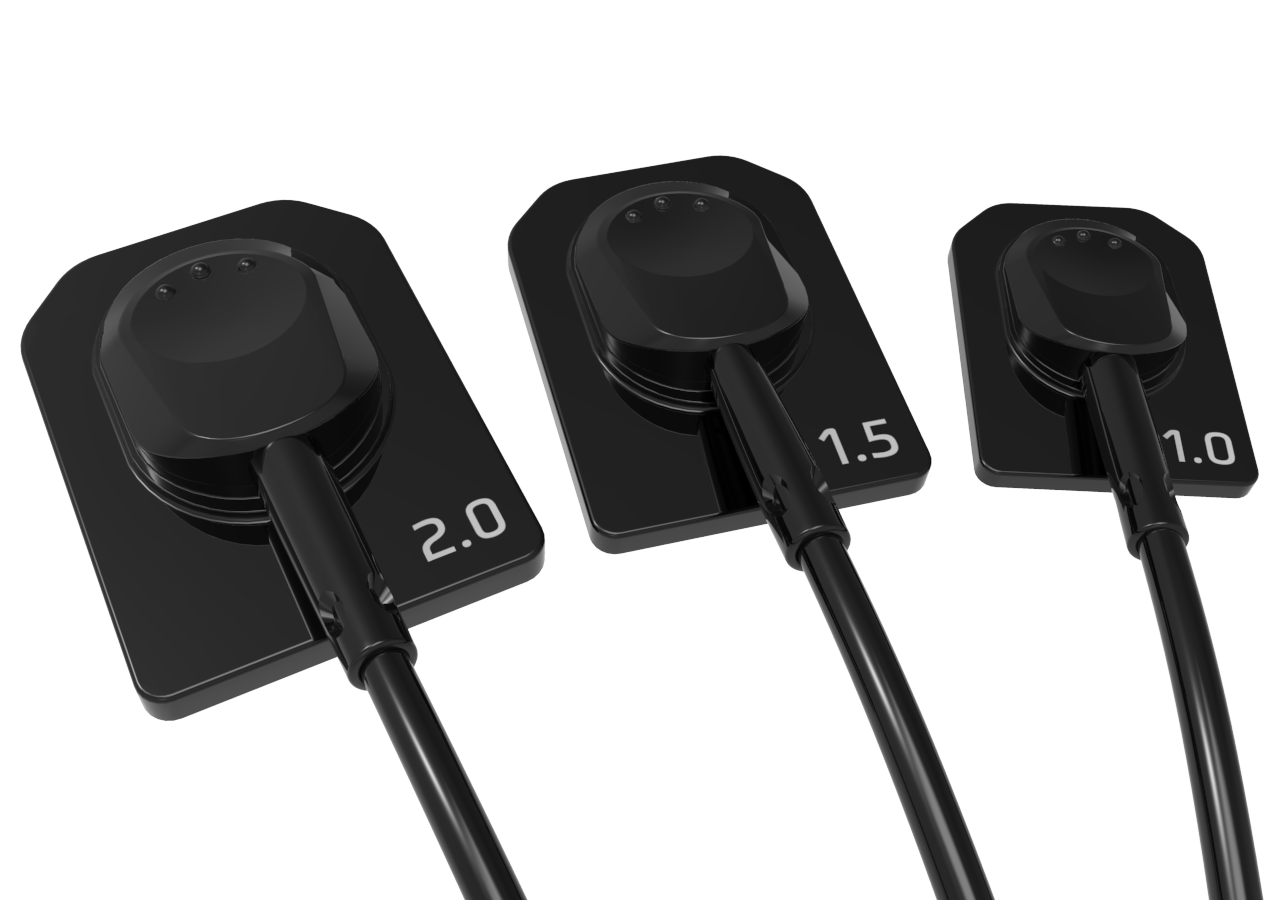

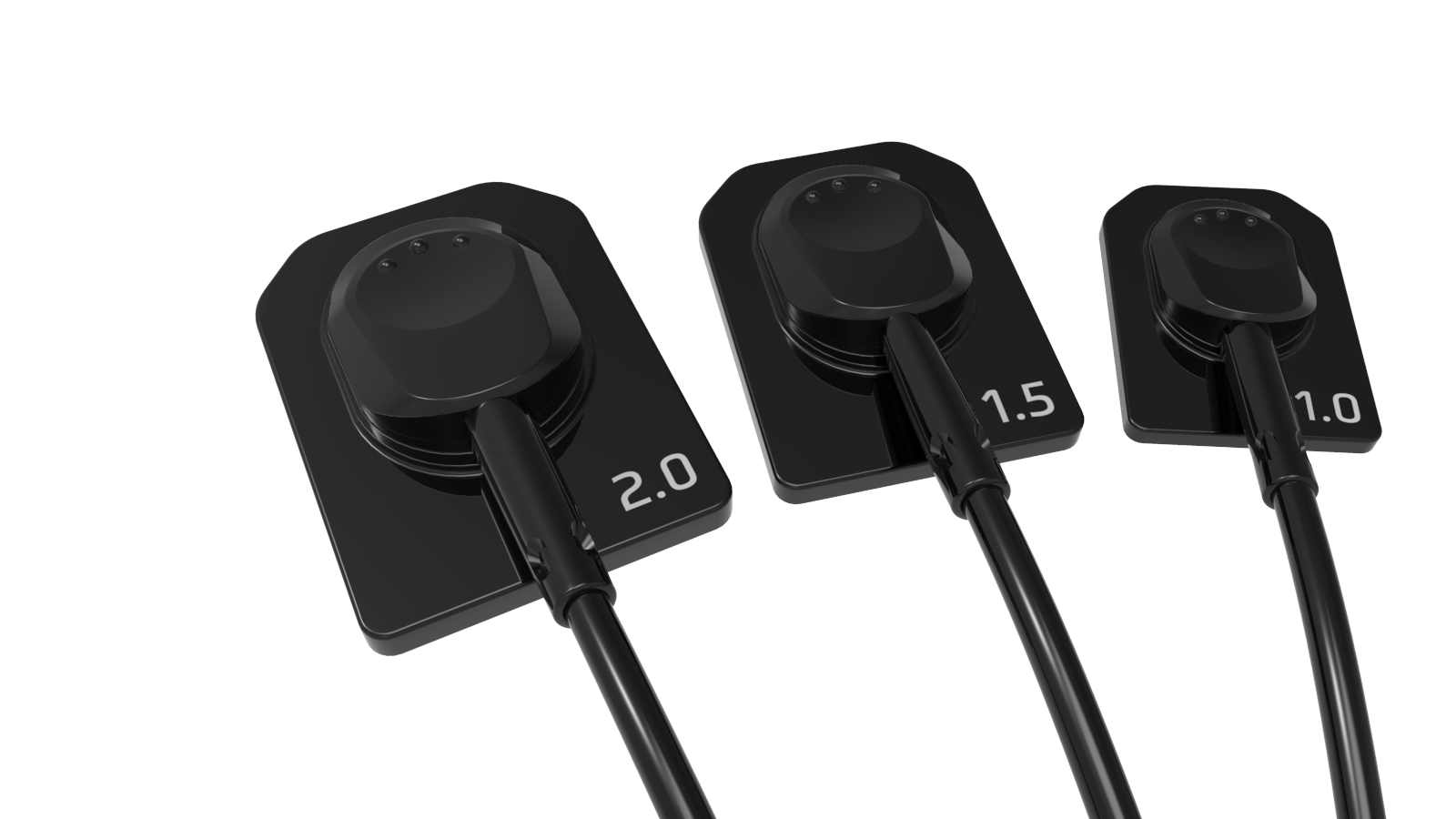

INTRAORAL CMOS SENSORS
Crystal-Clear Imaging. Unmatched Comfort. Designed for Veterinary Care.
When it comes to dental imaging, clarity matters—and so does comfort. The EzSensor Vet delivers both with precision-engineered intraoral imaging designed exclusively for veterinary practices.
Protection Plans Available
For added peace of mind, optional protection plans cover accidental cable damage or sensor failure from bite pressure—extending your investment protection up to 5 years.
EzSensor Shield Plan
- Covers bite damage, cable wear, and accidental breaks
- Up to 5 years of coverage
- Includes free loaners and shipping during repairs
Why Choose the EzSensor Vet?
High-Resolution Imaging for Confident Diagnoses
Built on advanced CMOS sensor technology, the EzSensor Vet captures sharp, detailed images with 16.8 lp/mm theoretical resolution, helping you quickly identify pathology, plan treatment, and monitor progress with confidence.
Engineered for Veterinary Workflow
With its direct USB interface and an 8.6-foot Kevlar-reinforced cable, this sensor adapts easily to your positioning needs without sacrificing durability. Waterproof (IP68 rated) and impact-resistant with a protective metal housing, it’s built to thrive in high-demand veterinary environments.
Designed for Comfort and Safety
This is the thinnest intraoral sensor available, minimizing patient discomfort—especially critical for smaller breeds and feline patients. Combined with proper anesthesia and sensor safety protocols, it reduces the risk of bite damage and enhances imaging success.

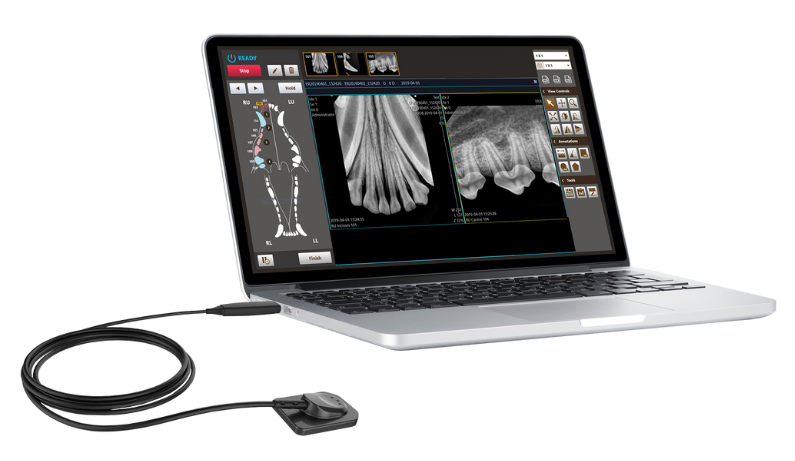

Smart Integration with MyVet Dent Software
The EzSensor Vet is fully integrated with the MyVet Dent platform for seamless acquisition, review, and management. Streamline your imaging process with intuitive software developed in-house to maximize sensor performance and clinical workflow.
Specifications At-A-Glance:
- Sensor Type: CMOS with FOS scintillator
- Pixel Size: 29.6 μm
- Dynamic Range: 67 dB
- Resolution: 16.8 lp/mm (theoretical)
- Waterproof Rating: IP68
- Connection: Direct USB (2.0)
- Cable Length: 8.6 ft
- Durability: Kevlar-wrapped cable + internal metal housing.
A Smarter Intraoral Solution Starts Here
From routine dental cleanings to surgical planning, the EzSensor Vet empowers your team with crisp diagnostic images, simplified workflows, and robust durability. Pulse ISM offers exclusive veterinary support, training resources, and protection options tailored to your practice.

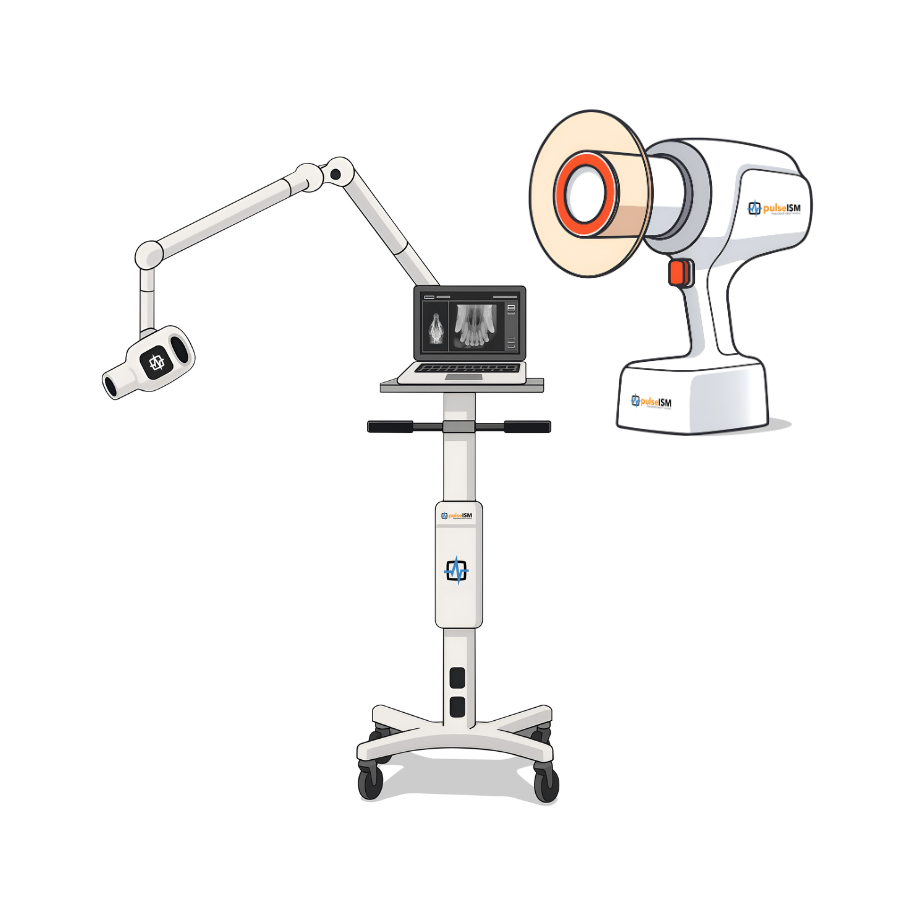

MOBILE DENTAL X-RAY
Lightweight. Stable. Designed for Veterinary Workflow.
The EzRay Vet™ Cart is a next-generation mobile intraoral x-ray system engineered to deliver superior image quality with a smoother, safer workflow. Its ultra-lightweight tube head, ergonomic design, and advanced carbon nanotube technology make it the ideal choice for veterinary practices focused on efficiency and patient comfort.
Why Choose the EzRay Vet™ Cart?
Expedite Dental Procedures
- Quick, precise positioning speeds up dental imaging
- Minimizes patient anesthesia time and stress
- Reduces restraint-related injury risks
Clear, Diagnostic Images
- 0.4 mm focal spot minimizes image blur for sharper details
- Consistent quality across any intraoral sensor
- Smart angulation
automatically adjusts exposure settings for challenging tooth positions
Ergonomic, Safety-First Design
- Ultra-lightweight tube head (5.6 lbs.) for one-handed, stable operation
- Large, locking caster wheels for mobility and safety
- Non-drifting arm for accurate positioning
- Contoured edges and modern design for operator comfort
- Integrated laptop tray (supports up to 17") for on-the-spot image review
- Sensor holder and cable management
keep workstations tidy
Smart Workflow Controls
- Intuitive Smart Dial consolidates all controls into one interface
- Automatic exposure compensation based on tube head angle
- Reduces guesswork and ensures consistent image quality
Carbon Nanotube (CNT) Technology
- Maximum exposure time reduced by 75% to animal and user while maintaining optimal image quality
- Smaller, more efficient x-ray tube design
- Reduced electronics for lighter handling
- Faster operation and greater reliability
Perfect For:
- Veterinary dental suites
- Practices looking to replace wall-mounted units with a mobile alternative
- Clinics seeking to improve workflow speed while reducing anesthesia risks
HAND-HELD DENTAL X-RAY
Lightweight. Powerful. Built for Veterinary Practice.
The EzRay Air Vet™ is a compact, high-performance handheld dental x-ray system that meets the everyday diagnostic demands of veterinary professionals. Designed for ease of use, speed, and safety, this unit delivers stable, clear intraoral images without slowing down your workflow.
Portable Innovation with Carbon Nano Technology (CNT)
Unlike traditional handheld x-ray systems, the EzRay Air Vet uses Carbon Nano Technology (CNT) to provide powerful imaging in a lightweight, energy-efficient design.
Key Advantages:
- 30% lighter than other handheld units—easy to position and maneuver
- No warm-up time – immediate use for faster exams
- Lower radiation dose while maintaining image clarity
- Significantly reduced cooldown times between exposures
- Ultra-stable image quality for clear diagnostics on the first shot
Engineered for Operator & Patient Safety
Safety is built in from the inside out:
- Internal Shielding: Advanced internal radiation protection limits leakage to protect the operator during every scan
- External Backscatter Shield: Reduces the amount of radiation reflected back toward the user, improving overall safety for clinical staff
Cut Cooldown Time by 75%
With CNT’s energy-efficient performance, the EzRay Air Vet reduces cooldown delays by nearly 75% compared to other leading devices. That means:
- More time focused on patient care
- Faster diagnosis
- Smoother, more efficient workflow
A Smart Choice for Any Veterinary Practice
Whether you’re adding dental diagnostics for the first time or upgrading your current imaging setup, the EzRay Air Vet offers:
- Mobility without compromise
- Instant operation without delay
- Precision imaging without extra bulk
- The confidence of knowing you're investing in proven technology used by veterinary teams nationwide

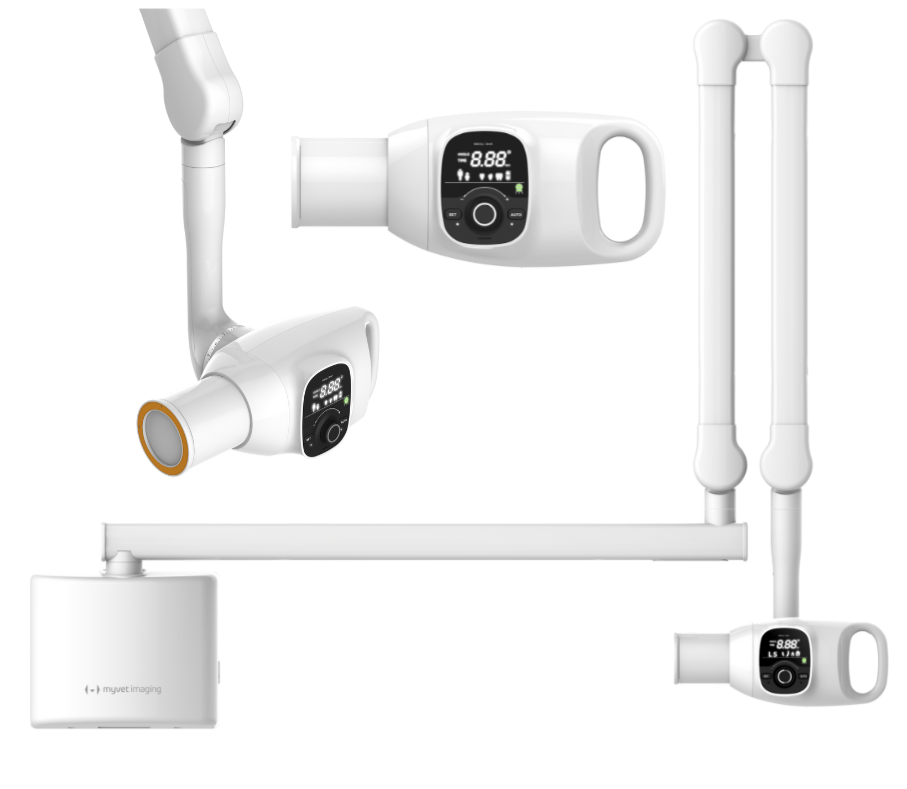

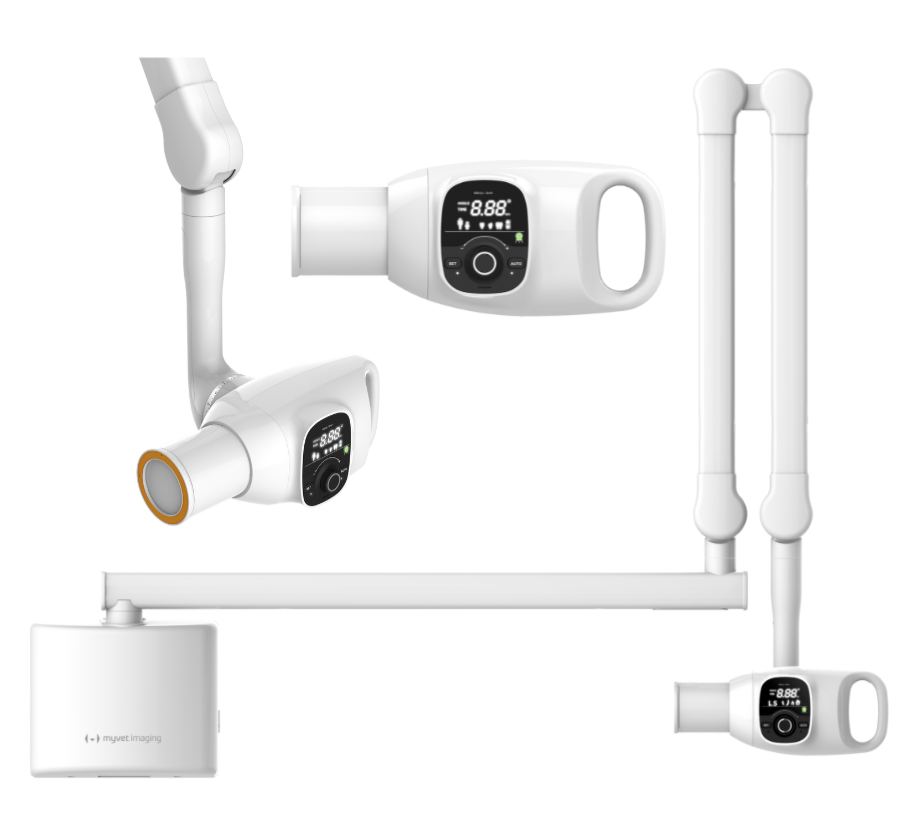

WALL-MOUNTED DENTAL X-RAY
Ultra-Lightweight. Smart Control. Unmatched Image Quality.
The MyVet Ray W delivers high-quality intraoral imaging in a wall-mounted design built for veterinary dental suites. With Carbon Nanotube (CNT) technology, ergonomic engineering, and intuitive controls, this system offers precision, consistency, and reliability—while saving space and improving workflow efficiency.
Why Choose the MyVet Ray W?
Crystal-Clear Imaging
- 0.4 mm focal spot minimizes image blur for sharper diagnostic detail
- Consistent image quality with any intraoral sensor
- Smart angulation
automatically adjusts exposure settings for challenging tooth positions
Smart Dial Controls
- All exposure settings in a single, easy-to-use dial
- Simple interface reduces prep time and training requirements
- Eliminates the need to memorize complex button configurations
Ergonomic Design for Workflow Efficiency
- Ultra-lightweight tube head (5.6 lbs.) ensures stable, one-handed operation
- Full range smooth glide for easy positioning
- Non-drifting, perfectly counterbalanced arm for accurate targeting
- Contoured, round-edged design enhances operator comfort and safety
- Ergonomic one-handed grip supports faster workflow
Carbon Nanotube Technology Advantages
- Smaller, lighter x-ray tube design
- Lower radiation dose to the user
- Greater longevity and energy efficiency
- Consistent target exposure for reliable results
Perfect For:
- Dedicated veterinary dental suites with wall space for permanent installation
- Practices seeking consistent, high-resolution imaging with minimal repositioning
- Clinics prioritizing operator safety, workflow speed, and long-term reliability
INCLUDED SOFTWARE & TRAINING
From first scan to final diagnosis—we’ve got your team covered. Your dental suite comes complete with:
- Advanced image acquisition software (MyVet Dent)
- Remote or on-site system training
- Access to our dental positioning guide (step-by-step for canine & feline imaging)
- Phone and virtual technical support
Optional Add-Ons
Upgrade your suite with:
- Panoramic dental drapes and positioning accessories
- Lead aprons, thyroid guards, and radiation safety glasses protection
- Sensor and generator carrying cases
- Custom room layout consultation for installation
Why Choose Pulse ISM?
As a WBE-certified medical imaging provider, Pulse ISM offers unmatched value and service in veterinary diagnostic solutions. We deliver:
- Competitive pricing on bundled systems
- Nationwide delivery and installation
- Warranty-backed refurbished or new options
- Friendly, knowledgeable support from imaging experts
- End-to-end coverage—equipment, accessories, service, and training
Dental SYSTEMS BUILT FOR VETERINARIANS
Ready to Build Your Dental Suite?
Let Pulse ISM help you create a veterinary dental imaging solution that meets your clinical goals and financial realities. Whether you're equipping a startup or expanding services in a specialty clinic, our team is ready to help.
